| Artikelnummer: | 236150505 |
| Beschikbaar in winkel?: | Ja |
| Levertijd: | 1 - 2 werkdagen |

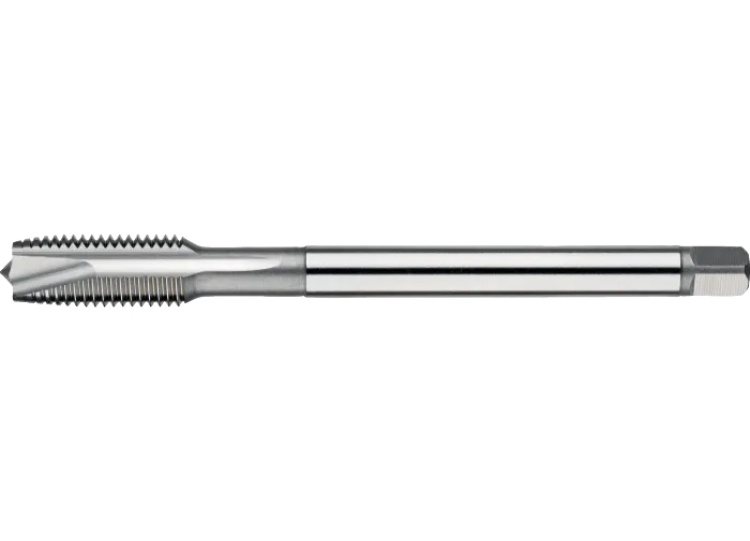

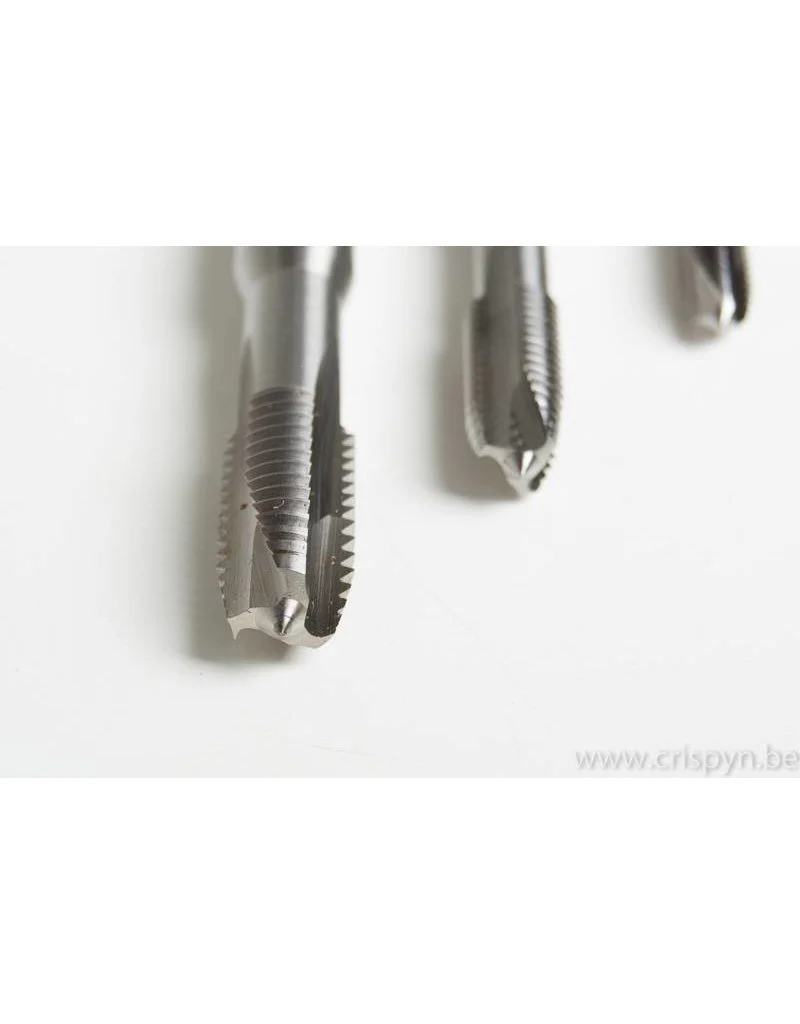

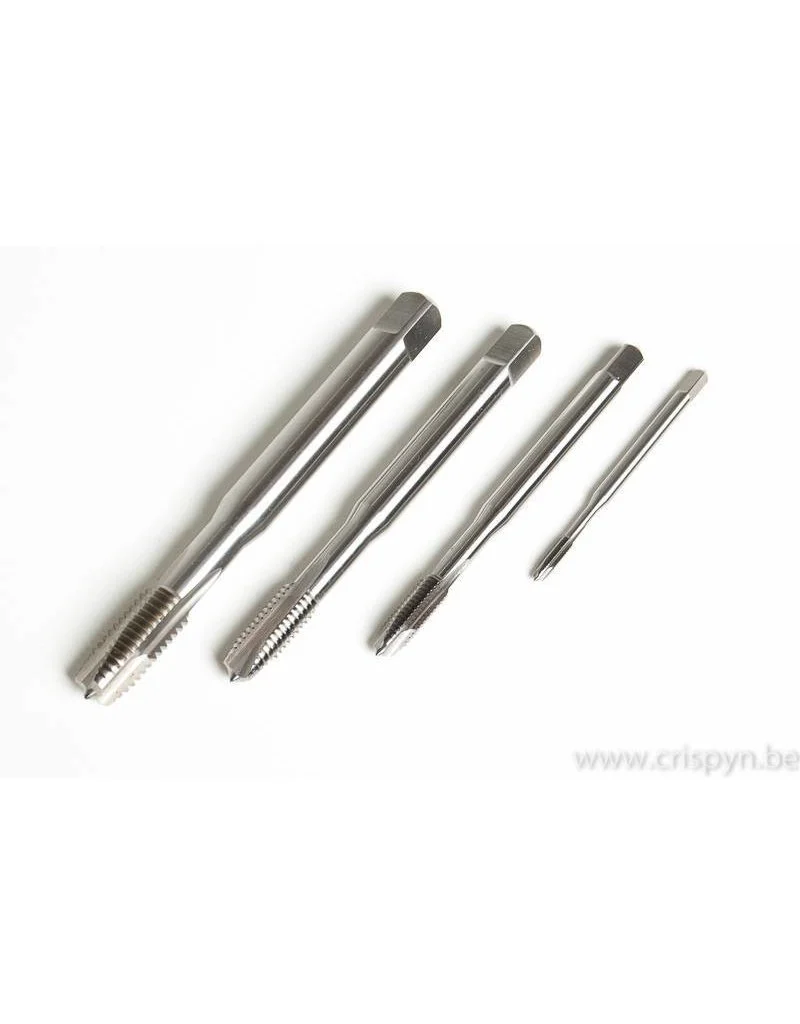

International tools HSSE-Co machinetap Metrisch Fijn voor doorlopende gaten volgens DIN371/376.
International tools machinetappen zijn budget-vriendelijke tappen die gebruikt worden daar waar er occasioneel tot regelmatig draad gesneden moet worden.
Geschikt voor ongelegeerd staal tot 800 N/mm², gietijzer en aluminium.
Specificaties:
| Draad ø (d1) |
Spoed (P) |
Totaallengte (l1) |
Spiraallengte (l2) |
Schachtdiameter | SW | Voorboor ø |
| MF5 | 0.5 mm | 70 mm | 12 mm | 3.5 mm | 2.7 mm | 4.50 mm |
| MF6 | 0.5 mm | 80 mm | 14 mm | 4.5 mm | 3.4 mm | 5.50 mm |
| MF6 | 0.75 mm | 80 mm | 14 mm | 4.5 mm | 3.4 mm | 5.25 mm |
| MF8 | 0.75 mm | 80 mm | 19 mm | 6 mm | 4.9 mm | 7.25 mm |
| MF8 | 1.00 mm | 90 mm | 22 mm | 6 mm | 4.9 mm | 7.00 mm |
| MF10 | 0.75 mm | 90 mm | 20 mm | 7 mm | 5.5 mm | 9.25 mm |
| MF10 | 1.00 mm | 90 mm | 20 mm | 7 mm | 5.5 mm | 9.00 mm |
| MF10 | 1.25 mm | 100 mm | 24 mm | 7 mm | 5.5 mm | 8.75 mm |
| MF12 | 1.00 mm | 100 mm | 22 mm | 9 mm | 7 mm | 11.00 mm |
| MF12 | 1.25 mm | 100 mm | 22 mm | 9 mm | 7 mm | 10.75 mm |
| MF12 | 1.50 mm | 100 mm | 22 mm | 9 mm | 7 mm | 10.50 mm |
| MF14 | 1.00 mm | 100 mm | 22 mm | 11 mm | 9 mm | 13.00 mm |
| MF14 | 1.25 mm | 100 mm | 22 mm | 11 mm | 9 mm | 12.75 mm |
| MF14 | 1.50 mm | 100 mm | 22 mm | 11 mm | 9 mm | 12.50 mm |
| MF16 | 1.00 mm | 100 mm | 22 mm | 12 mm | 9 mm | 15.00 mm |
| MF16 | 1.50 mm | 100 mm | 22 mm | 12 mm | 9 mm | 14.50 mm |
| MF18 | 1.00 mm | 110 mm | 25 mm | 14 mm | 11 mm | 17.00 mm |
| MF18 | 1.50 mm | 110 mm | 25 mm | 14 mm | 11 mm | 16.50 mm |
| MF20 | 1.00 mm | 125 mm | 25 mm | 16 mm | 12 mm | 19.00 mm |
| MF20 | 1.50 mm | 125 mm | 25 mm | 16 mm | 12 mm | 18.50 mm |
| MF20 | 2.00 mm | 140 mm | 25 mm | 16 mm | 12 mm | 18.00 mm |
| MF22 | 1.50 mm | 125 mm | 25 mm | 18 mm | 14.5 mm | 20.50 mm |
| MF24 | 1.50 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 22.50 mm |
| MF24 | 2.00 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 22.00 mm |
| MF25 | 1.50 mm | 140 mm | 28 mm | 18 mm | 14.5 mm | 23.50 mm |
